GLC600 Wireless Temperature and Vibration Gateways
(LoRa/ Zigbee/ Wi-Fi/ 4G)
A central local network node designed to receive data from hundreds of sensors, performing protocol conversion, data aggregation and remote transmission.
DAVISOL can customize this product to meet your specific application requirements.
PRIMARY SECTORS
-
Industrial Equipment Maintenance
-
Critical Infrastructure Monitoring
-
Public Facilities & Data Centers
-
Environmental Monitoring
Industry-Proven Applications
The GLC600 acts as a reliable bridge between on-site sensors, cloud platforms, and monitoring systems.
TYPICAL SCENARIOS
-
Predictive maintenance for rotating equipment like motors, pumps, and compressors to avoid unexpected shutdowns.
-
Structural health monitoring of bridges, tunnels, and dams under environmental loads.
-
Edge computing and feature extraction (RMS, peak, kurtosis) to reduce cloud computing pressure.
Technical specifications
Parameter
Values
Power supply voltage
DC 12 to 36 V
Power
5W
Network port
RJ45, 10/100M
Network protocol
TCP/IP
IP acquisition method
Static IP
LTE features
Downlink rate 10Mbps, uplink rate 5 Mbps
Operating temperature
-40 to 85°C
Operating humidity
5 to 95 % RH
Zigbee Frequency range (Model GCL600-A00Z)
2.4GHz
Zigbee Transmission power (Model GCL600-A00Z)
16dbm
Zigbee Communication distance(Model GCL600-A00Z)
250m
LoRa Frequency band (model GLC600-A00L)
410 to 510MHz
LoRa Channels (model GLC600-A00L)
Dual channel data
LoRa Transmission power (model GLC600-A00L)
24dBm
4G Supported frequency bands (model GLC600-A00G)
LTE-FDD / LTE-TDD / WCDMA / TD-SCDMA / CDMA / GSM
4G Output power (model GLC600-A00G)
30dbm
Wi-Fi Frequency range (model GLC600-A00W)
2.4G to 2.4835G; 5.18G to 5.845G
Wi-Fi Output power (model GLC600-A00W)
16dbm
Key performance and electrical parameters for the GLC600 Wireless Temperature and Vibration Gateways

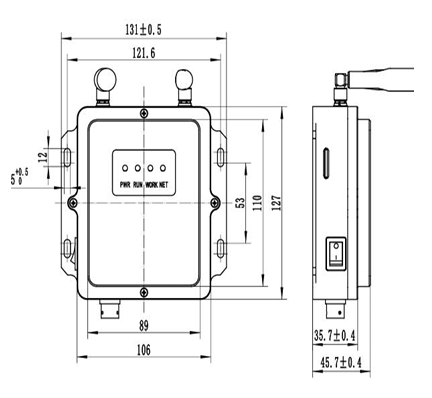

GLC600 Wireless Temperature and Vibration Gateway: Technical Drawing & Dimensions
Detailed technical manuals, electrical schematics, and 3D step-files are available upon request to support your integration process.
Do not hesitate to contact our engineering team for the full documentation package:
