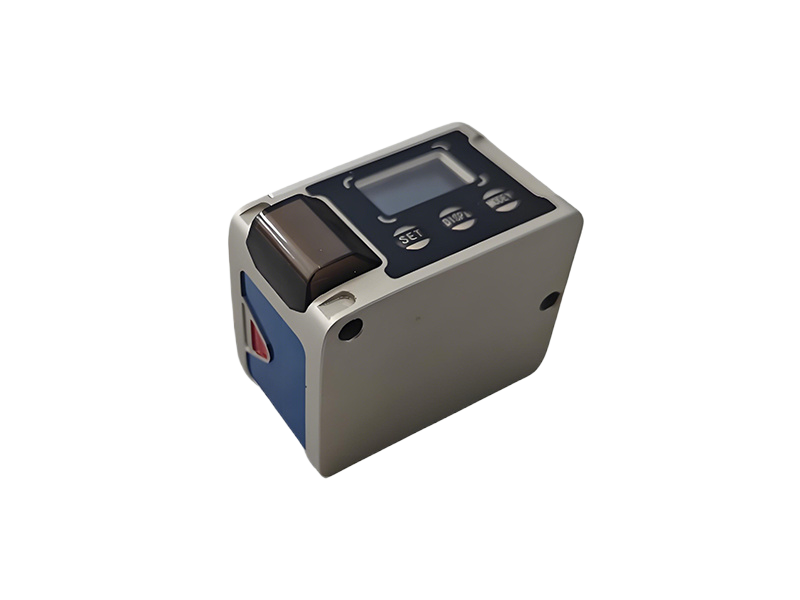

GY10A Series Diffuse Reflection Photoelectric Sensor
The GY10A is a professional-grade series engineered for long-range object detection without requiring reflectors or receivers. It features a powerful sensing range of up to 50m and an adjustable sensitivity potentiometer, making it highly adaptable for detecting objects of various sizes, colors, and textures in high-speed environments.
DAVISOL can customize this product to meet your specific application requirements.
PRIMARY SECTORS
-
Automated Logistics & Warehousing
-
Packaging & High-Speed Filling
-
Material Handling Systems
-
Printing & Paper Industries
Industry-Proven Applications
The GY10A is the industrial standard for reliable long-distance sensing on automated production lines.
TYPICAL SCENARIOS
-
Long-distance counting and sorting of boxes or components on conveyor systems.
-
Presence detection for automated palletizing and material feed control.
-
Stack height monitoring in paper processing or wood manufacturing.
Technical Specifications
Key parameters for the GY10A Series Sensors
Characteristic
Value
Different Models
GY10A; GY10A-M; GY10A-485
Laser Light Source
Laser diode 905nm ≤0.4mW
Laser Rating
Class 1
Indicating Laser
Laser diode 650nm ≤5mW
Frequency Range GY10A
2 kHz
Frequency Range GY10A-M
2 kHz
Frequency Range GY10A-485
20 Hz - 5kHz
Working Distance
10m @10%reflectivity; 0.05m-10m @80%reflectivity.
The reflectance can be extended up to 50m
Response Time
1 ms
Absolute Precision
±100 mm
Repeat Accuracy
±5 mm
Operating Voltage GY10A & GY10A-485
9 - 30V
Operating Voltage GY10A-M
18 - 30V
Interface GY10A
PNP, NPN
Interface GY10A-M
4 - 20 mA
Interface GY10A-485
RS-485
Ambient Light Immunity
<10 klux
Operating Temperature
-20 to 50°C
Ambient Temperature
-40 to 80°C
Load Limit GY10A
≤100mA
Load Limit GY10A-M
≤500Ω@24V
Power Consumption
<2W
GY10A Diffuse Reflection Photoelectric Sensor: Technical Documentation
Detailed technical manuals, electrical schematics, and 3D step-files are available upon request to support your integration process.
Do not hesitate to contact our engineering team for the full documentation package:
