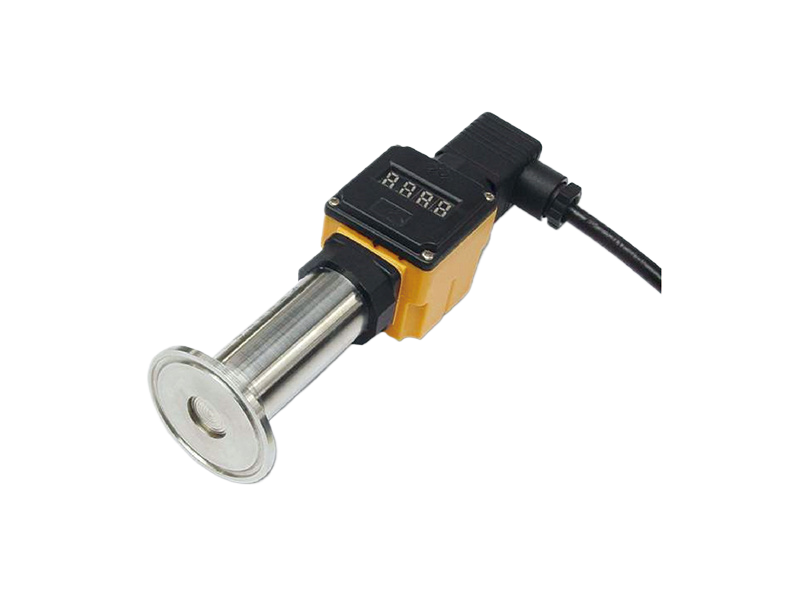

MB340 Silicon Sanitary Flush Pressure Transmitter
Features an integrated stainless steel and flush diaphragm construction designed specifically for food hygiene, medical, and pharmaceutical applications where ease of cleaning and precision are mandatory.
If your specific requirements are not fully met by the standard MB340 configurations, DAVISOL can customize the product to match your exact operating conditions.
Primary Sectors
- Food and beverage
- Medical and pharmaceutical industry
- Biochemical systems
- Wine making
Industry-Proven Applications
The MB340 series delivers reliable sanitary measurement for specialized process control in industries requiring sterile or easy-to-clean sensing interfaces.
Typical Scenarios
- Sanitary process pressure monitoring
- Level and pressure control in sterile tanks
- Integration into medical or pharmaceutical production lines
Technical Specifications
Key performance, electrical, and environmental parameters for the MB340 Silicon Sanitary Flush Pressure Transmitter
Performance Parameters
Electrical Specs
Environmental Ratings
Pressure Range
0~60MPa (standard) or customized ranges
Power Supply
(12–36) VDC
Operating (Ambient) Temp.
-40°C to 85°C
Accuracy
±0.1%FS to ±0.5%FS (typ.) @ 25°C
Output Signal
(4–20)mA, (0–5)V, or (1–5)V
Medium Temperature
-40°C to 125°C
Long-term Stability
±0.2%FS/year
Wiring Configuration
2-wire (4–20mA) or 3-wire (voltage outputs)
Protection Rating
IP67
Overload Range
200%FS
Insulation Resistance
250 MΩ/250V or 100MΩ/250V
Vibration Resistance
10–500Hz, 25g
Burst Pressure
300%FS
Shock Resistance
50g, 11ms
Pressure
Available in absolute, gauge or sealed gauge
Configuration & Order Guide
Use the selection table below to build the MB340 part number according to your application requirements.
Parameter
Pressure Range
Pressure Reference
Excitation (Power)
Output Signal
Pressure Connection
Electrical Connection
Accuracy Class
Specific need
Selection Code
0~60MPa
A, G, S
V1, V2, V3
S1, S2, S3, S4
C1, C2, C3,C4
E1, E2, E3, E4
A1, A2, A3
I, E, K, L, Y
Options Description
Standard range 0.1–60MPa or customized ranges upon request
Absolute (A), Gauge (G), or Sealed Gauge (S)
V1: 24V, V2: 12V, V3: Others (please specify upon quote request)
S1: 4–20mA, S2: 1–5V, S3: 0–5V, S4: Others (please specify upon quote request)
C1: Hoop structure; C2: M27x2 or G1''; C3: M20x1.5 or G1/2''; C4: Others (please specify upon quote request)
E1: Hirschman connection, E2: Direct cabling, E3: Air plug, E4: Others (please specify upon quote request)
A1: 0.1%FS, A2: 0.25%FS, A3: 0.5%FS (typ)
I: Intrinsically safe Exia II CT6, E: Anti-vibration, K:Anti-impact, LX: x m cable, Y: Others (please specify upon quote request)
Example Model Number
Order Example: MB340-0~16MPa-G-V1-S1-C1-E1-A1-IL2
In this example, the transmitter is configured as: Pressure range from 0 to 30 MPa (0~30MPa), Gauge pressure (G), 24V Excitation (V1), 4–20 mA output (S1), M20x1.5 or G1/2 connection (C1), Hirschman connector, 0.1% Accuracy Class (A1), and Intrinsically safe Exia II CT6 (I) with a 2m long cable.
Premium Precision, Optimized for Your Budget.
Technical Drawing & Dimensions
Detailed technical manuals, electrical schematics, and 3D step-files are available upon request to support your integration process. Do not hesitate to contact our engineering team for the full documentation package: engineering@davisol.ch
