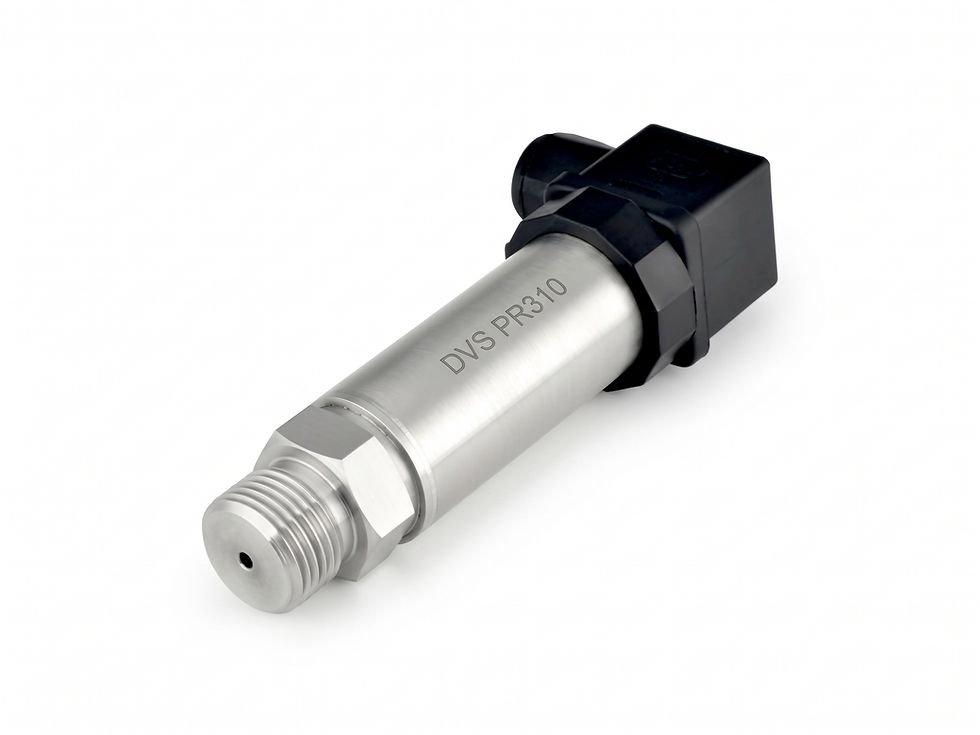

DVS-PR310 VersaLine Industrial Pressure Sensor
A highly adaptable sensing solution featuring high precision, anti-vibration capabilities, and a robust stainless steel construction for long-term stability in severe environments.
If your specific requirements are not fully met by the standard DVS-PR310 configurations, DAVISOL can customize the product to match your exact operating conditions.
Primary Sectors
- Petroleum & Petrochemicals
- Chemical Processing Industry
- Power Generation & Distribution
- Natural Gas Infrastructure
Industry-Proven Applications
The MB300 series delivers engineered precision and long-term stability across critical energy and manufacturing infrastructure.
Typical Scenarios
- Process control for pumps and compressors
- General machinery heavy-duty monitoring
- Hydraulic and pneumatic system oversight
- Severe environment operational stability
Technical Specifications
Key performance, electrical, and environmental parameters for the DVS-PR310 VersaLine Industrial Pressure Sensor.
Performance Parameters
Pressure Range
0.1 to 60 MPa (standard) or customized
Accuracy
±0.1 to 1%FS @25°C
Long-term Stability
0.2%FS/year
Overload Range
200%FS
Response Time
—
Bursting Pressure
300%FS
Electrical Specs
Power Supply
(9–36) VDC
Output Signal
4–20 mA, 0–5 V, or 1–5 V
Wiring Configuration
2-wire (4–20 mA) or 3-wire (voltage outputs)
Insulation Resistance
250 MΩ/250 V or 100 MΩ/250 V
Environmental Ratings
Operating (Ambient) Temp.
-40°C to 85°C
Medium Temperature
-40°C to 125°C
Protection Rating
IP67
Vibration Resistance
10–500 Hz, 25 g
Shock Resistance
50 g, 11 ms
Compatibility
Non-corrosive
Configuration & Order Guide
Use the selection table below to build the DVS-PR310 part number according to your application requirements.
Parameter
Pressure
Pressure Reference
Excitation (Power)
Output Signal
Pressure Connection
Electrical Connection
Accuracy Class
Selection Code
-0.1~60 MPa
G, S, A
V1, V2, V3
S1, S2, S3, S4
C1, C2, C3
E1, E2, E3, E4
A1, A2, A3, A4, A5
Options Description
Range + Unit type (Psi; Bar; kpa; Mpa ...)
Gauge Pressure (G); Sealed Gauge Pressure (S); Absolute Pressure (A)
24V (V1); 12V (V2); Others (V3 - Please specify in quote request)
4-20mA (S1); 0-10VDC (S2); 0-5VDC (S3); Others (S4 - Please specify in quote request)
M20x1.5 (C1); G 1/2" (C2), Others (C3 - Please specify in quote request)
Hirschman (E1), Direct Cable (E2), Air plug (E3), Others (E4 - Please specify in quote request)
0.1% FS (A1), 0.25% FS (A2), 0.5% FS (A3 - Standard), 1% FS (A4), Other (A5 - Please specify in quote request)
Example Model Number
Generated Model Config: DVS-PR310-0~1MPa-G-S1-C1-E1-A3
In this example, the transmitter is configured as: Pressure range from 0 to 1 MPa (0~1MPa), Gauge pressure (G), 4–20 mA output (S1), M20x1.5 connection (C1), Hirschman connector (E1), and 0.5% Accuracy Class (A3).
DAVISOL, Engineering that Delivers.
Technical Drawing & Dimensions
Detailed technical manuals and 3D step-files are available upon request to support your integration process. Do not hesitate to contact our engineering team for the full documentation package:
engineering@davisol.ch
